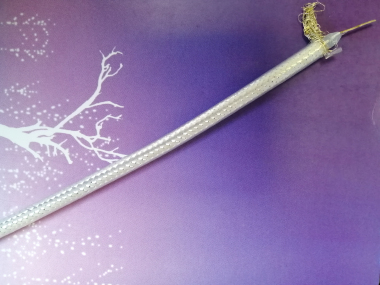

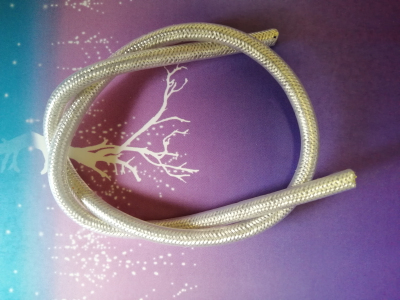

耐高溫射頻同軸電纜SFF SF46F
耐高溫射頻同軸電纜SFF SF46F技術參數：
•額定溫度：-60℃∽150℃
•額定電壓：耐電壓測試2000V不擊穿，火花實驗電壓4000V
•絕緣材料：SFF:PTFE
SF46F:FEP
•絕緣層顏色:半透明
•護套顏色：透明、淺棕色或藍色
•產品通過UL VW-1及CSA FT1耐燃測試
耐高溫射頻同軸電纜SFF SF46F適用于通訊設備及其他電子設備的高頻信號傳輸
|
電纜型號 |
導體結構 |
芯線外徑 |
屏蔽層型式 |
護套層***小厚度 |
電纜完成外徑 |
衰減常數≤dB/m |
|||
|
30Hz |
200Hz |
3000Hz |
|||||||
|
RG-178 |
SFF-50-1 |
7/0.10 |
0.87 |
1 |
0.2 |
1.8 |
0.33 |
0.85 |
3.4 |
|
RG-316 |
SFF-50-1.5-1 |
7/0.18 |
1.5 |
1 |
0.25 |
2.55 |
0.19 |
0.5 |
2 |
|
RG-316D |
SFF-50-1.5-2 |
7/0.18 |
1.5 |
2 |
3.1 |
0.19 |
0.5 |
2 |
|
|
SFF-50-2-1 |
1/0.73 |
2.2 |
1 |
3.3 |
0.12 |
0.31 |
1.27 |
||
|
SFF-50-2-2 |
1/0.73 |
2.2 |
2 |
3.95 |
0.12 |
0.31 |
1.27 |
||
|
RG-303 |
SFF-50-3-1 |
1/0.93 |
3 |
1 |
0.35 |
4.35 |
0.086 |
0.23 |
0.95 |
|
RG-142 |
SFF-50-3-2 |
1/0.93 |
3 |
2 |
5.1 |
0.086 |
0.23 |
0.95 |
|
|
RG-304 |
SFF-50-5 |
1/1.48 |
4.6 |
1 |
6.3 |
0.057 |
0.15 |
0.67 |
|
|
SFF-50-7 |
7/0.82 |
7.3 |
1 |
9.1 |
0.044 |
0.12 |
0.52 |
||
|
SF46F-50-2-1 |
7/0.254 |
2.2 |
1 |
0.25 |
3.3 |
0.12 |
0.31 |
1.27 |
|
|
SF46F-50-2-2 |
7/0.254 |
2.2 |
2 |
3.95 |
0.12 |
0.31 |
1.27 |
||
|
SF46F-50-3-1 |
7/0.35 |
3 |
1 |
0.35 |
4.35 |
0.086 |
0.23 |
0.95 |
|
|
SF46F-50-3-2 |
7/0.35 |
3 |
2 |
5.1 |
0.086 |
0.23 |
0.95 |
||
|
RG-178 |
SF46F-50-1 |
7/0.10 |
0.87 |
1 |
0.2 |
1.8 |
0.33 |
0.85 |
3.4 |
|
RG-316 |
SF46F-50-1.5-1 |
7/0.18 |
1.5 |
1 |
0.25 |
2.55 |
0.19 |
0.5 |
2 |
|
RG-316 |
SF46F-50-1.5-2 |
7/0.18 |
1.5 |
2 |
3.1 |
0.19 |
0.5 |
2 |
|
|
SF46F-50-2-1 |
7/0.254 |
2.2 |
1 |
3.3 |
0.12 |
0.31 |
1.27 |
||
|
SF46F-50-2-2 |
7/0.254 |
2.2 |
2 |
3.95 |
0.12 |
0.31 |
1.27 |
||
|
SF46F-50-3-1 |
7/0.35 |
3 |
1 |
0.35 |
4.35 |
0.086 |
0.23 |
0.95 |
|
|
SF46F-50-3-2 |
7/0.35 |
3 |
2 |
5.1 |
0.086 |
0.23 |
0.95 |
||
